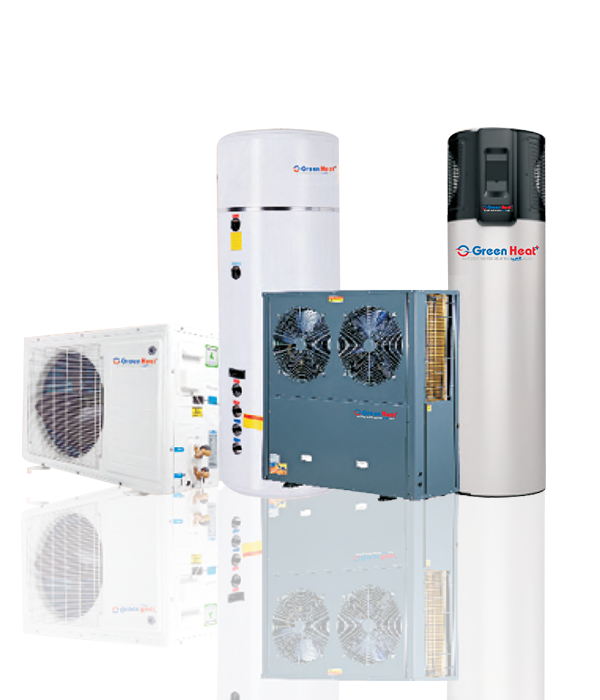

Domestic Air Source Heat Pumps

An extensive range of heat pumps for residential use.
We specializes in solar equipments and pressure machine pumps installation and setup, offering the latest technology and state of the art equipment, from renowned manufacturers around the globe.

The product comes with a 2 year on inner tank & 2 year warranty on the product, assuring a dependable service.

Models Available

Model	GH 4.9	GH 6.8	GH 9.5	GH 11.5
Heating Capacity (Kw)	4.9	6.8	9.5	11.5
Heating Power Input (Kw)	1.34	1.87	2.64	2.9
Rated Current (A)	6.2	8.6	11.5	5.9
Coeff. of Performance (COP)	3.66	3.64	3.66	3.90
Maximum Water Temp. (°C)	55	55	55	55
Max. Thermostat Setting (°C)	75	75	75	75
Production Capacity (LPH)	105	146	190	247
Noise (db[A])	<50	<50	<55	<55
Net / Gross Weight (KG)	55/60	59/64	65/71	104/110
Water Connection (mm)	DN 20	DN 20	DN 20	DN 25
Casing	Galvanized Steel/Color Spray
Body Size (WDH)	985305520	985305520	995315520	710710870
Compressor	Rotary Type (Copeland)			Scrol Type (Copeland)
Refrigerant	R410a	R410a	R410a	R417a
Circulation Water Pump	Inbuilt (Wilo/Grundfos)			External
Power Supply	220V/1ph/50Hz	220V/1ph/50Hz	380V/3ph/50Hz	380V/3ph/50Hz
Condenser	Efficient tank heat exchanger			Tube in Tube heat exchanger
Evaporator	L-2/900*500/Ø 9.52			U-1/1660*650/Ø 9.52
Four Way Valve	DSF-9	DSF-9	DSF-11	DSF-11
Expansion valve	Capillary Tube	Capillary Tube	Capillary Tube	Sanhua
AC Contactor	Eaton(220-18A)	Eaton(220-18A)	Eaton(220-12A)	Eaton(220-12A)
Controller	Single System (Motorola Chip)
Storage Tank Capacity	200 Ltrs	300 Ltrs	500 Ltrs	500 Ltrs

Advantages

Consumption of Low electrical power.
Environment friendly product with very low carbon footprint no pollution.
They can be installed any where including terrace.
Low space requirement is required as compared to other heating systems with good aesthetic.
Safety features like precaution against no water flow, electrical shock resistance no fire hazards.
Better shading tolerance
40° C lower hot spot temperature
Minimizes micro-crack impacts
